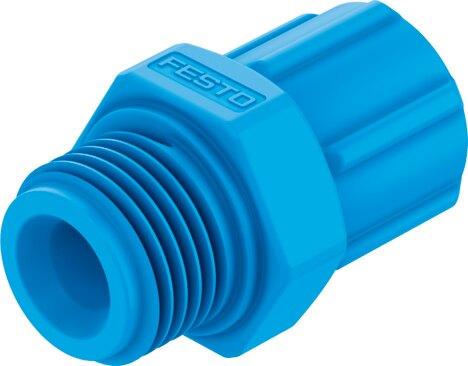

Reference imageConfirm configuration by manufacturer part number.
Festo
6253
Quick connector CK-1/8-PK-3-KU
The Festo part number 6253 is a straight industrial component featuring a 2.4 mm nominal width, a G1/8 external thread, and a connection for a 4 mm outside diameter pneumatic tubing or a 3 mm inside diameter barbed fitting with a nut. Constructed with POM union nuts and screwed plugs utilizing a sealing edge, this component operates across a pressure range of -0.95 bar to 10 bar for compressed air and up to 0.6 MPa for water at a maximum of 50 °C. It accommodates an ambient temperature range of -10 °C to 60 °C, requires a nominal tightening torque of 3.25 Nm with a ±20% tolerance, and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Type of seal on screwed plug
- Sealing edge
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 3.25 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
- Material of union nut
- POM
- Material of screwed plug
- POM
- Note on materials
- RoHS compliant
