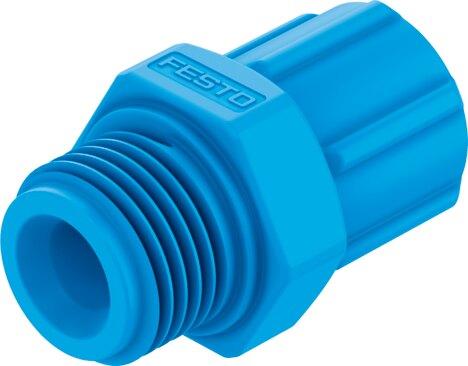

Name: Festo 6255 Quick connector CK-1/8-PK-6-KU
Brand: Festo

Quick connector CK-1/8-PK-6-KU

The Festo part number 6255 is a straight industrial component featuring a 4.4 mm nominal width, an external thread G1/8 pneumatic connection 1, and a pneumatic connection 2 for an 8 mm outside diameter tubing or a 6 mm inside diameter barbed fitting with a nut. Constructed with a POM union nut and screwed plug incorporating a sealing edge, this RoHS-compliant part supports compressed air and liquid water operating media across an operating pressure range of -0.95 bar to 10 bar. It operates within an ambient temperature range of -10 °C to 60 °C and has a nominal tightening torque of 3.25 Nm with a ±20% tolerance, packaged in a quantity of 10. Request a quote by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6255
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6255.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 4.4 mm
Type of seal on screwed plug: Sealing edge
Mounting position: Any
Design: Straight design
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Nominal tightening torque: 3.25 Nm
Tolerance for nominal tightening torque: ±20%
Pneumatic connection 1: External thread G1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
Material of union nut: POM
Material of screwed plug: POM
Note on materials: RoHS compliant
