Name: Festo 6260 Elbow quick connector LCK-1/8-PK-6-KU
Brand: Festo

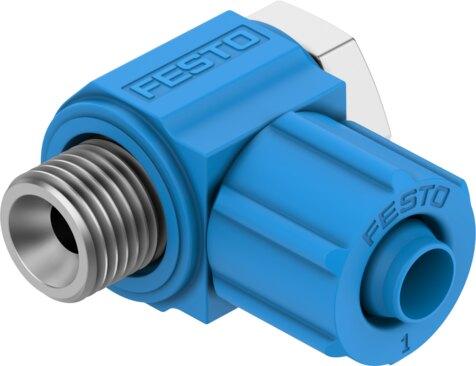

Elbow quick connector LCK-1/8-PK-6-KU

The Festo part number 6260 is an L-shaped industrial component featuring a 5.3 mm nominal width, a G1/8 external thread for pneumatic connection 1, and a connection for 8 mm outside diameter pneumatic tubing or 6 mm inside diameter barbed fitting with a nut for pneumatic connection 2. This assembly operates across a pressure range of -0.095 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:-:-] with ambient temperatures spanning -10 °C to 60 °C, utilizing an anodized wrought aluminum alloy hollow bolt, POM swivel joint and union nut, and a sealing edge on the screwed plug. Corrosion resistance is rated at CRC 2 with VDMA24364-B1/B2-L LABS conformity and RoHS compliance, supplied in a pack size of 10 with lubricated operation supported. Submit your exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6260
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6260.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 5.3 mm
Type of seal on screwed plug: Sealing edge
Mounting position: Any
Design: L-shape
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: External thread G1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
Material of union nut: POM
Note on materials: RoHS compliant
Hollow bolt material: Wrought aluminum alloy, anodized
Swivel joint material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
