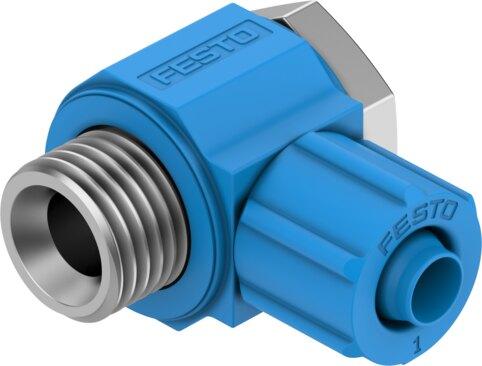

Name: Festo 6262 Elbow quick connector LCK-1/4-PK-6-KU
Brand: Festo

Elbow quick connector LCK-1/4-PK-6-KU

The Festo 6262 is an L-shaped industrial component featuring a 5.3 mm nominal width, an external thread G1/4 pneumatic connection 1, and a pneumatic connection 2 for an 8 mm outside diameter tubing or a 6 mm inside diameter barbed fitting with a nut. This RoHS-compliant part supports an operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi) across an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. Built with an anodized wrought aluminum alloy hollow bolt, POM swivel joint and union nut, and a sealing edge on the screwed plug, the unit offers a moderate corrosion stress rating (CRC 2) and VDMA24364-B1/B2-L LABS conformity for any mounting position. This pack size of 10 is available for procurement by submitting the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6262
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6262.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 5.3 mm
Type of seal on screwed plug: Sealing edge
Mounting position: Any
Design: L-shape
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: External thread G1/4
Pneumatic connection 2: for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
Material of union nut: POM
Note on materials: RoHS compliant
Hollow bolt material: Wrought aluminum alloy, anodized
Swivel joint material: POM
