Festo
6265

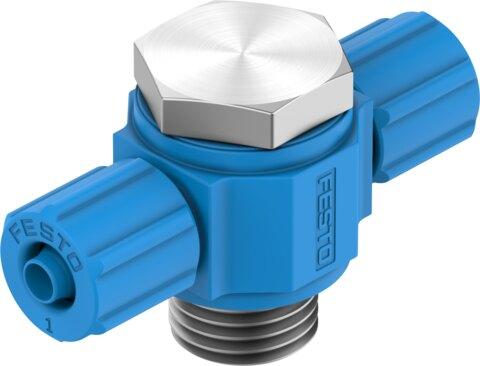

T quick connector TCK-1/4-PK-4-KU
The Festo part number 6265 is a T-shaped industrial component featuring a nominal width of 3.4 mm, an external thread G1/4 pneumatic connection 1, and a pneumatic connection 2 for 6 mm outside diameter tubing or 4 mm inside diameter barbed fittings with a nut. Built with a POM housing, union nut, and swivel joint alongside an anodized wrought aluminum alloy hollow bolt, this part operates across a temperature range of -10 °C to 60 °C and an operating pressure of -0.095 MPa to 1 MPa. It utilizes a sealing edge on the screwed plug, offers moderate corrosion resistance (CRC 2), supports lubricated operation with compressed air according to ISO 8573-1:2010 [7:-:-], and is packaged in a pack size of 10 with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6265
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6265.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 3.4 mm
- Type of seal on screwed plug
- Sealing edge
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
- Material of union nut
- POM
- Note on materials
- RoHS compliant
- Housing material
- POM
- Hollow bolt material
- Wrought aluminum alloy, anodized
- Swivel joint material
- POM
