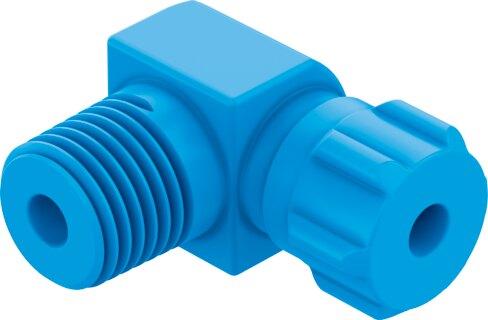

Reference imageConfirm configuration by manufacturer part number.
Festo
6268
Elbow quick connector GCK-1/8-PK-6-KU
The Festo part number 6268 is an L-shaped industrial component featuring a 4.9 mm nominal width, an external thread R1/8 pneumatic connection 1, and a pneumatic connection 2 for an 8 mm outside diameter tubing or a 6 mm inside diameter barbed fitting with a nut. This pack of 10 units operates within a temperature range of -10 °C to 60 °C and an operating pressure range of -0.95 bar to 10 bar utilizing compressed air in accordance with ISO 8573-1:2010 [7:-:-], accommodating lubricated operation and featuring POM union nuts and screwed plugs that comply with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6268
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6268.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.9 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
- Material of union nut
- POM
- Material of screwed plug
- POM
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 6268. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
