6269

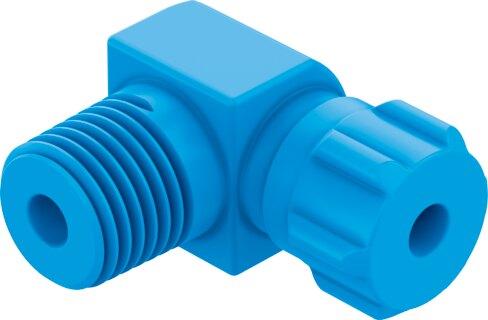

Name: Festo 6269 Elbow quick connector GCK-1/4-PK-4-KU
Brand: Festo

Elbow quick connector GCK-1/4-PK-4-KU

The Festo part number 6269 is an L-shaped industrial component featuring a 2.9 mm nominal width and can be mounted in any position. It operates within a temperature range of -10 °C to 60 °C and an operating pressure of -0.095 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:-:-], with lubricated operation possible. This RoHS-compliant part includes an external thread R1/4 pneumatic connection 1 and a pneumatic connection 2 for 6 mm outside diameter tubing or 4 mm inside diameter barbed fitting with a POM union nut and screwed plug, supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6269
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6269.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 2.9 mm
Mounting position: Any
Design: L-shape
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: External thread R1/4
Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
Material of union nut: POM
Material of screwed plug: POM
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6269. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
