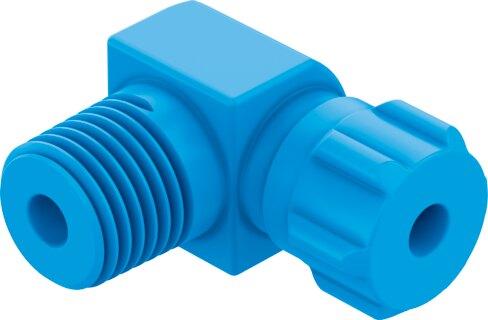

Name: Festo 6272 Elbow quick connector GCK-3/8-PK-9-KU
Brand: Festo

Elbow quick connector GCK-3/8-PK-9-KU

The Festo 6272 is an L-shaped industrial component featuring a nominal width of 8 mm, an external thread R3/8 pneumatic connection 1, and a pneumatic connection 2 with a nut for a barbed fitting with a 9 mm inside diameter. Engineered for any mounting position, this part operates within a pressure range of -0.95 bar to 10 bar (-13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. It is constructed with a POM union nut and screwed plug, supports lubricated operation, complies with RoHS notes and VDMA24364-B1/B2-L LABS conformity, and is supplied in a pack size of 10. Submit part number 6272, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6272
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6272.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 8 mm
Mounting position: Any
Design: L-shape
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: External thread R3/8
Pneumatic connection 2: for barbed tting, inside diameter 9 mm, with nut
Material of union nut: POM
Material of screwed plug: POM
Note on materials: RoHS compliant
