Name: Festo 6273 T-distributor FCK-3-PK-3-KU
Brand: Festo

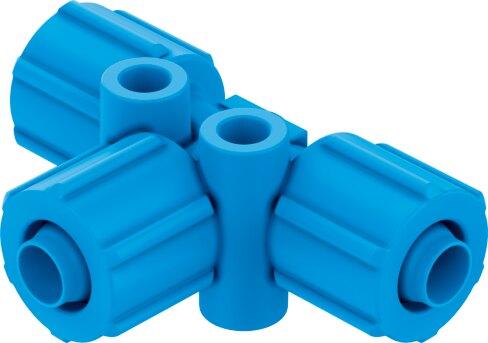

T-distributor FCK-3-PK-3-KU

The Festo 6273 is a T-shaped industrial component featuring a 2.4 mm nominal width and robust POM connector and union nut construction. Designed for universal mounting positions, this pack of 10 fittings operates across a pressure range of -0.95 bar to 10 bar and an ambient temperature range of -10 °C to 60 °C using compressed air per ISO 8573-1:2010 [7:-:-]. Pneumatic connection 1 and connection 2 accommodate 4 mm outside diameter tubing or 3 mm inside diameter barbed fittings with a union nut, supporting lubricated operation and meeting RoHS compliance alongside VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6273
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6273.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 2.4 mm
Mounting position: Any
Design: T-shape
Pack size: 10
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: for pneumatic tubing outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
Material of union nut: POM
Note on materials: RoHS compliant
Connector material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6273. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
