Festo
6686

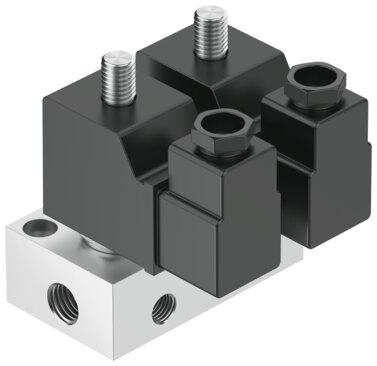

Air solenoid valve BMCH-2-3-1/8
The Festo 6686 is a directly controlled electrical industrial component featuring a 2x3/2 closed, monostable valve function with a mechanical spring reset method and a soft sealing principle. This poppet valve operates within a pressure range of -0.095 MPa to 0.7 MPa, delivers a normal nominal flow rate of 160 l/min through a G1/8 pneumatic working port, and requires 30 W for pick-up and 22 W for holding power consumption. Designed with an IP65 degree of protection, a 2.5 mm nominal width, and a product weight of 680 g, it functions with compressed air under ISO 8573-1:2010 [7:4:4] standards where oil lubrication is possible. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6686
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6686.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 160 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- -0.095 MPa...0.7 MPa | -0.95 bar...7 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 2.5 mm
- Sealing principle
- Soft
- Max. no. of valve positions
- 2
- Type of control
- directly
- Pick-up power consumption
- 30 W
- Holding power consumption
- 22 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Product weight
- 680 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Housing material
- Aluminum
