6687

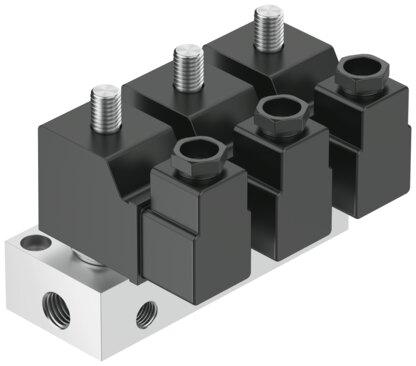

Name: Festo 6687 Air solenoid valve BMCH-3-3-1/8
Brand: Festo

Air solenoid valve BMCH-3-3-1/8

The Festo part number 6687 is an electrical poppet valve featuring a 3x3/2 closed, monostable valve function with spring return and a G1/8 pneumatic working port. This direct-controlled component delivers a nominal flow rate of 160 l/min at an operating pressure range of -0.095 MPa to 0.7 MPa, and includes vacuum suitability alongside an IP65 degree of protection. Operating media requires compressed air as per ISO 8573-1:2010 [7:4:4] within a medium temperature range of -10 °C to 60 °C and an ambient temperature range of -5 °C to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6687
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6687.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3x3/2 closed, monostable
Actuation type: Electrical
Normal nominal ow rate (normalized to DIN 1343): 160 l/min
Pneumatic working port: G1/8
Operating pressure: -0.095 MPa...0.7 MPa | -0.95 bar...7 bar
Structural design: Poppet valve with spring return
Reset method: Mechanical spring
Degree of protection: IP65
Nominal width: 2.5 mm
Sealing principle: Soft
Max. no. of valve positions: 3
Type of control: directly
Suitability for vacuum: Yes
Pick-up power consumption: 30 W
Holding power consumption: 22 W
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: -10 °C...60 °C
Ambient temperature: -5 °C...40 °C
Product weight: 1010 g
Electrical connection: Plug
Type of mounting: With through-hole
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/8
Housing material: Aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6687. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
