Festo
6701

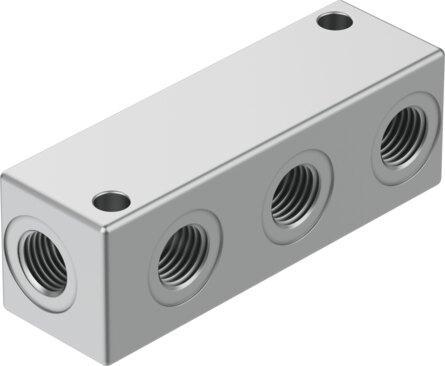

Distributor block FR-4-1/8-B
Manufactured by Festo with part number 6701, this industrial component features a die-cast aluminum housing with one G1/8 internal thread supply line and three G1/8 internal thread outlets across an 8.6 mm nominal width. It operates on compressed air matching ISO 8573-1:2010 [7:-:-] from 0 bar to 16 bar across an ambient temperature range of -10 °C to 80 °C, supporting oil lubrication and allowing mounting in any position. The RoHS compliant part weighs 25 g, exhibits CRC 0 corrosion resistance, and conforms to VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6701
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6701.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8.6 mm
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 25 g
- No. of outlets
- 3
- No. of supply lines
- 1
- Pneumatic connection 1
- Internal thread G1/8
- Pneumatic connection 2
- Internal thread G1/8
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
