6704

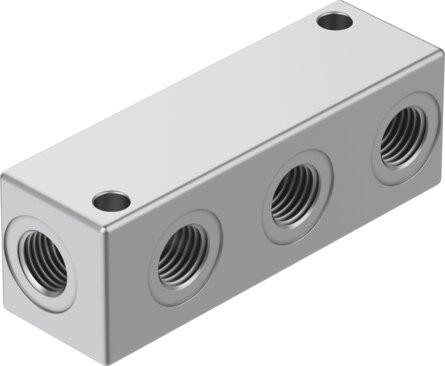

Name: Festo 6704 Distributor block FR-4-1/2-B
Brand: Festo

Distributor block FR-4-1/2-B

The Festo part number 6704 is an industrial component featuring a nominal width of 18.6 mm, a die-cast aluminum housing, and a product weight of 120 g. This unit is configured with one G1/2 internal thread supply line, three G1/2 internal thread outlets, and supports any mounting position with an operating pressure range of 0 bar to 16 bar across an ambient temperature range of -10 °C to 80 °C. It operates using compressed air as per ISO 8573-1:2010 [7:-:-], allows for oil lubrication, and carries a corrosion resistance class of CRC 0 with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 6704
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 6704.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 18.6 mm
Mounting position: Any
Operating pressure for entire temperature range: 0 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Product weight: 120 g
No. of outlets: 3
No. of supply lines: 1
Pneumatic connection 1: Internal thread G1/2
Pneumatic connection 2: Internal thread G1/2
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 6704. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
