Festo
6720

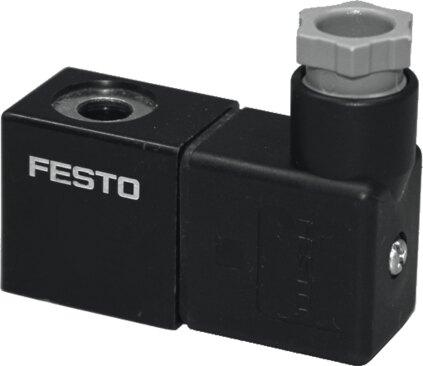

Solenoid coil MSFW-110-50/60
The Festo 6720 is an industrial component featuring a 3-pin electrical connection with plug tags, a knurled nut mounting type, and a product weight of 55 g with an IP65 degree of protection. This unit operates on a coil characteristic of 110 V AC at 50/60 Hz, delivering an initial power of 9.0 VA, a holding power of 7.0 VA, a power factor cos phi of 0.7, and a minimum pick-up time of 10 ms with a 100% duty cycle in any mounting position. Constructed with a solenoid coil material of duroplast, copper, and steel alongside a copper winding, it complies with the EU low voltage directive, UK electrical equipment instructions, RoHS, and VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6720
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6720.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Switching position indication
- No
- Min. pick-up time
- 10 ms
- Duty cycle
- 100%
- Power factor cos {phi}
- 0.7
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 5%
- Permissible voltage uctuations
- +/- 10%
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...40 °C
- Max. tightening torque of socket
- 0.4 Nm
- Product weight
- 55 g
- Electrical connection
- 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
