Festo
6753

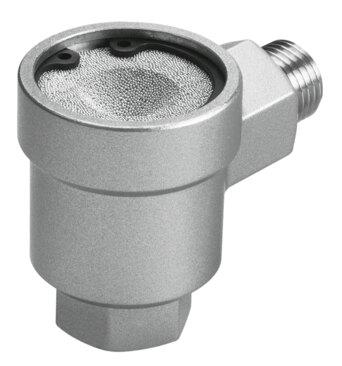

Quick exhaust valve SEU-1/4
The Festo 6753 is a quick exhaust industrial component featuring an integrated muffler, G1/4 pneumatic connections on both ports, and a screw-in mounting design. It operates within a pressure range of 0.5 bar to 10 bar and an ambient and medium temperature range of -20 °C to 75 °C, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] with a nominal width of 7 mm. Constructed with a die-cast zinc housing and NBR seals, this unit delivers a standard nominal flow rate of 1100 l/min for exhaust air (6->5 bar) and 960 l/min for pressurization. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6753
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6753.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Selection of additional function
- with muffler
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Type of mounting
- Screw-in
- Standard nominal ow rate exhaust air 6->5 bar
- 1100 l/min
- Standard ow rate exhaust 6-> 0 bar
- 2300 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 960 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Die-cast zinc
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Nominal width
- 7 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Noise level
- 95 dB(A)
- Product weight
- 120 g
- Seals material
- NBR
