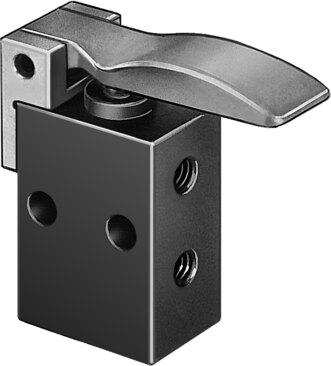

Reference imageConfirm configuration by manufacturer part number.
Festo
6758
Finger lever valve TH-3-M5
Festo Finger lever valve TH-3-M5, part number 6758, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 6758
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6758.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 3/2-way, closed, monostable
- Normal nominal ow rate (normalized to DIN 1343)
- 80 l/min
- Pneumatic working port
- M5
- Operating pressure
- -0.95 bar...8 bar
- Structural design
- Plate seat
- Nominal width
- 2 mm
- Type of control
- directly
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 8 N
- Product weight
- 37 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M5
- Seals material
- NBR
- Housing material
- Die-cast zinc
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 6758. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
