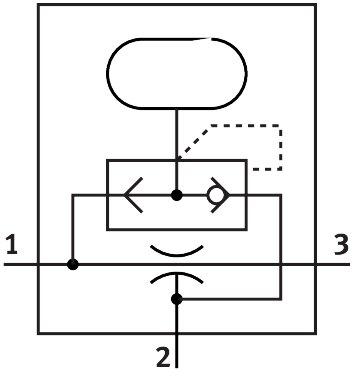

Reference imageConfirm configuration by manufacturer part number.
Festo
6890
Vacuum generator VAK-1/4
The Festo 6890 is a T-shaped industrial component featuring a die-cast aluminum housing, a 1 mm nominal width Laval nozzle, and integrated pneumatic ejector pulse functionality. It operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar / 21.75 psi to 145 psi) and delivers high vacuum characteristics up to 80% using compressed air as per ISO 8573-1:2010 [7:4:4]. Equipped with G1/4 pneumatic connections 1, 3, and vacuum connection, this unit is mounted via through-holes in any position and operates across a medium and ambient temperature range of -20 °C to 80 °C with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 6890
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 6890.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1 mm
- Mounting position
- Any
- Ejector characteristics
- High vacuum
- Integrated function
- Ejector pulse, pneumatic
- Structural design
- T-shape
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Max. vacuum
- 80 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...80 °C
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Vacuum connection
- G1/4
- Housing material
- Die-cast aluminum
