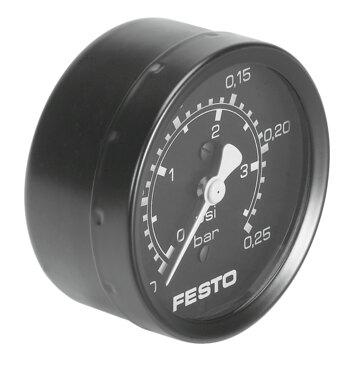

Reference imageConfirm configuration by manufacturer part number.
Festo
7169
Pressure gauge MA-63-0,25
The Festo 7169 is a nominal size 63 industrial pressure gauge featuring a display range of 0 bar to 0.25 bar and a measurement accuracy class of 1.6, conforming to standard DIN EN 837-3. Designed for in-line installation with a centered rear G1/4 pneumatic connection, this component utilizes a steel housing, brass screwed plug, and PMMA inspection window for operation within liquid and gaseous media across a medium temperature of -20 °C to 80 °C. It provides IP43 protection and ATEX certification for Zones 1, 2, 21, and 22 while excluding acetylene and oxygen media. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7169
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7169.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...0.25 bar | 0 psi...3.6 psi
- Conforms to standard
- DIN EN 837-3
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Type of mounting
- In-line installation
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 bar...0.25 bar
- Intermittent load factor
- 0.9
- Continuous load factor
- 0.75
- Measurement accuracy class
- 1.6
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Connection position
- Centered on rear side
- Pneumatic connection
- G1/4
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PMMA
- Product weight
- 180 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7169. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
