Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
7471

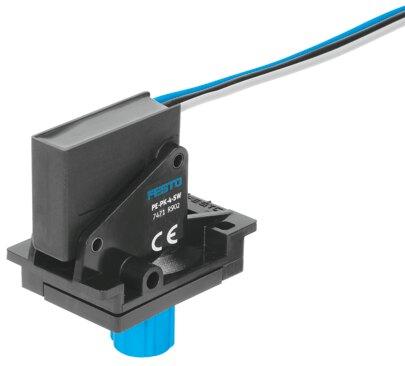

PE converter PE-PK-4-SW
The Festo part number 7471 is an industrial component that functions as a pneumatic and electric pressure transducer to measure relative pressure within an operating range of 0 MPa to 0.025 MPa (0 bar to 0.25 bar) and a maximum overload pressure of 8 bar. It operates with compressed air conforming to ISO 8573-1:2010 [7:4:4], allowing lubricated operation across medium and ambient temperatures from 0 °C to 60 °C. The unit features a contact-based switching output with a changeover switch element function, a fixed hysteresis threshold value, a maximum switch-on point of 0.25 bar, a minimum switch-off point of 0.07 bar, and an AC and DC operating voltage range of 12 V to 250 V. This device complies with EN 60947-5-1 standards and carries CE and UKCA markings in accordance with applicable EU and UK directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-1
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Measured variable
- Relative pressure
- Method of measurement
- Pneumatic/electric pressure transducer
- Operating pressure
- 0 MPa...0.025 MPa | 0 bar...0.25 bar
- Max. overload pressure
- 8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Switching output
- Contact-based
- Switching function
- Threshold value with xed hysteresis
- Switching element function
- Changeover switch
- Max. switch-on point
- 0.25 bar
- Min. switch-off point
- 0.07 bar
- Max. switching frequency
- 1 Hz
- Minimum load current
- 100 mA
- Operating voltage range AC
- 12 V...250 V
- DC operating voltage range
- 12 V...250 V
- Utilization category for inductive load
- AC-14 | DC-13
- Utilization category for ohmic load
- AC-12 | DC-12
- Electrical connection
- 3 connecting wires
- Electrical connection 1, connection technology
- Open end
- Cable length
- 0.5 m
- Material of cable sheath
- PVC
- Type of mounting
- Alternatively: | On mounting frame 1n | With through-hole
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7471. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
