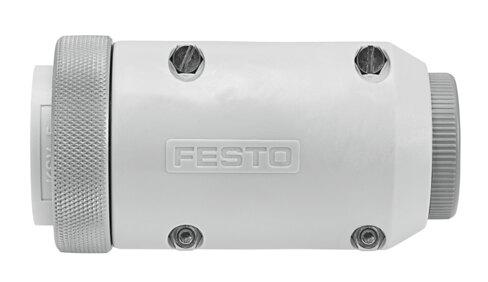

Name: Festo 7557 Multi-plug KSV-5
Brand: Festo

Multi-plug KSV-5

The Festo part number 7557 is an industrial component featuring a 4 mm nominal width, 5 maximum connections, and pneumatic connections including PK-2, PK-3, and PK-4. This gray component operates within a pressure range of -0.95 bar to 16 bar and handles compressed air media per ISO 8573-1:2010 [7:-:-] at temperatures from -10 °C to 60 °C, supporting oil lubrication operation and maintaining a corrosion resistance class of 2 with a product weight of 92 g. RoHS compliant and meeting VDMA24364-B1/B2-L LABS conformity, it is designed for ambient temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 7557
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 7557.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 4 mm
Operating pressure: -0.95 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 92 g
Max. connections: 5
Pneumatic connection: PK-2 | PK-3 | PK-4
Color: Gray
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 7557. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
