Festo
7559

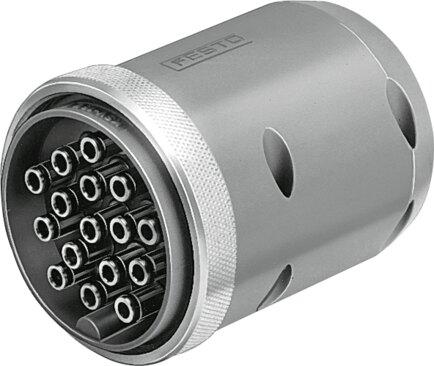

Multi-plug KSV-16-B
The Festo part number 7559 is an industrial component with a nominal width of 4 mm and a 223 g product weight in a gray finish. Featuring up to 16 connections with pneumatic connection types PK-2, PK-3, and PK-4, it operates within a pressure range of -0.95 bar to 16 bar and temperatures from -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS-compliant unit exhibits a CRC corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity, supporting oil lubrication operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7559
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7559.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Operating pressure
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 223 g
- Max. connections
- 16
- Pneumatic connection
- PK-2 | PK-3 | PK-4
- Color
- Gray
- Note on materials
- RoHS compliant
