Festo
7560

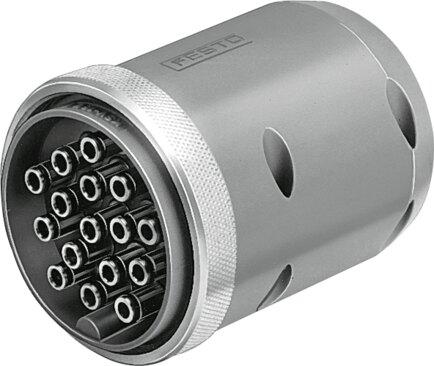

Multi-plug KSV-32-B
This Festo industrial component, part number 7560, features a nominal width of 4 mm and accommodates up to 32 connections with pneumatic connections of PK-2, PK-3, and PK-4. The gray unit operates within a pressure range of -0.95 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-], supporting medium and ambient temperatures from -10 °C to 60 °C. Operation with oil lubrication is possible and required for further use, while the RoHS compliant assembly provides a corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity at a product weight of 374 g. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7560
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7560.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Operating pressure
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 374 g
- Max. connections
- 32
- Pneumatic connection
- PK-2 | PK-3 | PK-4
- Color
- Gray
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7560. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
