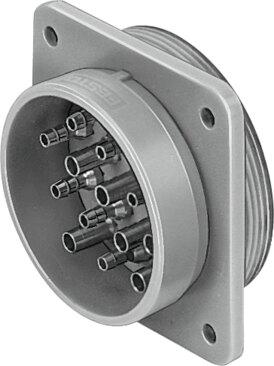

Reference imageConfirm configuration by manufacturer part number.
Festo
7564
Multi-socket KDVF-16-B
The Festo part number 7564 is a gray industrial component weighing 64 g, featuring a nominal width of 4 mm and a maximum of 16 connections with pneumatic connection options PK-2, PK-3, and PK-4. This RoHS-compliant unit operates within an ambient and medium temperature range of -10 °C to 60 °C at operating pressures from -0.95 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. It achieves a corrosion resistance class of CRC 2 for moderate corrosion stress, conforms to VDMA24364-B1/B2-L LABS requirements, and permits operation with oil lubrication which is required for further use. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7564
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7564.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Operating pressure
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 64 g
- Max. connections
- 16
- Pneumatic connection
- PK-2 | PK-3 | PK-4
- Color
- Gray
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7564. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
