Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.

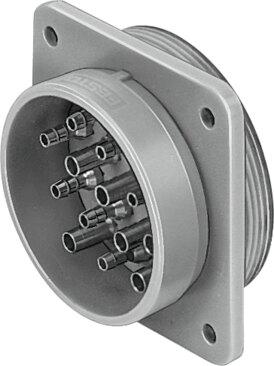

Festo
7565
Multi-socket KDVF-32-B
The Festo part number 7565 is an industrial component featuring a nominal width of 4 mm and supporting an operating pressure range from -0.95 bar to 16 bar. Constructed for compressed air operating media conforming to ISO 8573-1:2010 [7:-:-], this gray unit accommodates up to 32 connections with PK-2, PK-3, and PK-4 pneumatic ports, a medium and ambient temperature range of -10 °C to 60 °C, and a product weight of 131 g. It operates with oil lubrication and meets RoHS compliance, VDMA24364-B1/B2-L LABS conformity, and corrosion resistance class CRC 2 moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7565
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7565.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4 mm
- Operating pressure
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 131 g
- Max. connections
- 32
- Pneumatic connection
- PK-2 | PK-3 | PK-4
- Color
- Gray
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7565. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
