Festo
7843

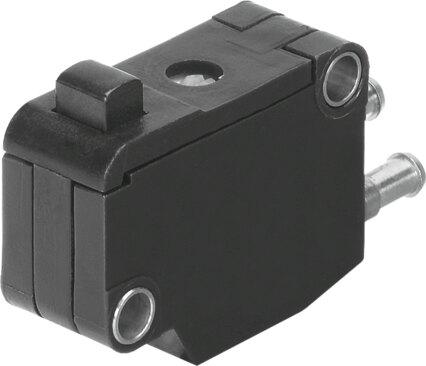

Stem actuated micro valve S-3-PK-3-B
The Festo 7843 is a directly controlled 3/2-way closed monostable industrial component featuring a poppet valve structural design with a mechanical spring reset method. Built with a polymer and brass housing, this valve operates within a pressure range of -0.95 bar to 8 bar and achieves a normal nominal flow rate of 60 l/min through PK-3 pneumatic working ports. It incorporates a soft sealing principle, requires a 6 N actuating force, weighs 7 g, and supports any mounting position via through-holes. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7843
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7843.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 60 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- -0.95 bar...8 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Nominal width
- 1.8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 6 N
- Product weight
- 7 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Housing material
- Polymer | Brass
