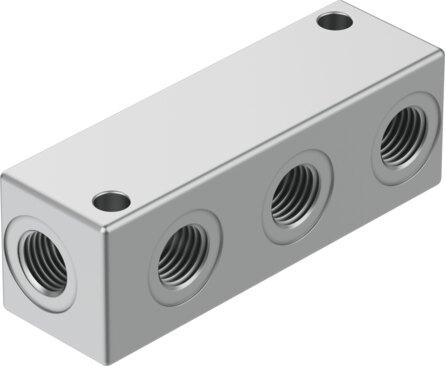

Name: Festo 7849 Distributor block FR-4-1/4-C
Brand: Festo

Distributor block FR-4-1/4-C

The Festo part number 7849 is an industrial component featuring a die-cast aluminum housing with a nominal width of 11.5 mm and a product weight of 60 g. This unit includes one internal thread G1/4 supply line, three internal thread G1/4 outlets, and operates within an ambient temperature range of -10 °C to 80 °C. It supports compressed air operating media as per ISO 8573-1:2010 [7:-:-] from 0 bar to 16 bar across the entire temperature range, allows for optional oil lubrication, and maintains a corrosion resistance class of CRC 0. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 7849
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 7849.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 11.5 mm
Mounting position: Any
Operating pressure for entire temperature range: 0 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...80 °C
Product weight: 60 g
No. of outlets: 3
No. of supply lines: 1
Pneumatic connection 1: Internal thread G1/4
Pneumatic connection 2: Internal thread G1/4
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 7849. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
