Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

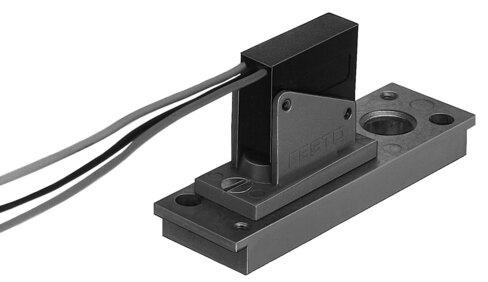

Reference imageConfirm configuration by manufacturer part number.
Festo
7862
PE converter PE-1/8-2N-SW
The Festo 7862 is a pneumatic-to-electric pressure transducer engineered to measure relative pressure within an operating range of 0 bar to 8 bar and a maximum overload pressure of 12 bar using compressed air according to ISO 8573-1:2010 [7:4:4] at temperatures between 0 °C and 60 °C. Conforming to EN 60947-5-1, this component features a contact-based changeover switch with a fixed hysteresis, a maximum switch-on point of 2 bar, a minimum switch-off point of 0.5 bar, and a maximum switching frequency of 1 Hz for AC and DC operating voltages from 12 V to 250 V with a minimum load current of 100 mA. It carries CE marking as per the EU low voltage directive and UKCA marking to UK instructions for electrical equipment, while allowing lubricated operation within a medium and ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 7862
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7862.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-1
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Measured variable
- Relative pressure
- Method of measurement
- Pneumatic/electric pressure transducer
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Max. overload pressure
- 12 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Switching output
- Contact-based
- Switching function
- Threshold value with xed hysteresis
- Switching element function
- Changeover switch
- Max. switch-on point
- 2 bar
- Min. switch-off point
- 0.5 bar
- Max. switching frequency
- 1 Hz
- Minimum load current
- 100 mA
- Operating voltage range AC
- 12 V...250 V
- DC operating voltage range
- 12 V...250 V
- Utilization category for inductive load
- AC-14 | DC-13
- Utilization category for ohmic load
- AC-12 | DC-12
- Electrical connection
- 3 connecting wires
- Electrical connection 1, connection technology
- Open end
- Cable length
- 0.5 m
- Material of cable sheath
- PVC
- Type of mounting
- Alternatively: | On mounting frame 2n | With through-hole
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 7862. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
