8000033

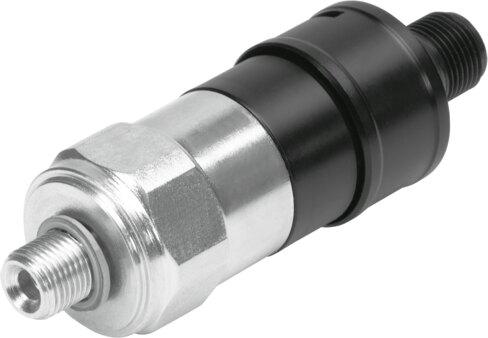

Name: Festo 8000033 Pressure switch SPBA-P2R-G18-W-M12-0,25X
Brand: Festo

Pressure switch SPBA-P2R-G18-W-M12-0,25X

The Festo part number 8000033 is an industrial component that measures relative pressure using a pneumatic and electric pressure transducer. It operates within a pressure range of -0.1 MPa to 1 MPa (-1 bar to 10 bar) utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with lubricated operation possible. This RoHS compliant device features a contact-based switching output with a fixed hysteresis, a changeover switch element function, a 0.25 bar switch-on point, a maximum switch-on point of 0.4 bar, a minimum switch-off point of 0.05 bar, a DC operating voltage range of 19.2 V to 30 V, a maximum DC output current of 1000 mA, and a minimum load current of 2 mA at 24 V, terminating in a 4-pin M12x1 A-coded round plug connection as per EN 60947-5-2 and EN 61076-2-101. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8000033
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8000033.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Pneumatic/electric pressure transducer
Operating pressure: -0.1 MPa...1 MPa | -1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Switching output: Contact-based
Switching function: Threshold value with xed hysteresis
Switching element function: Changeover switch
Switch-on point: 0.25 bar
Max. switch-on point: 0.4 bar
Min. switch-oﬀ point: 0.05 bar
Max. output current DC: 1000 mA
Minimum load current: 2 mA at 24 V
Short-circuit protection: No
DC operating voltage range: 19.2 V...30 V
Reverse polarity protection: No
Electrical connection: 4-pin | M12x1 | Plug | As per EN 60947-5-2 | Round design
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
Type of mounting: Screw-in
Pneumatic connection: G1/8
Product weight: 80 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8000033. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
