Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

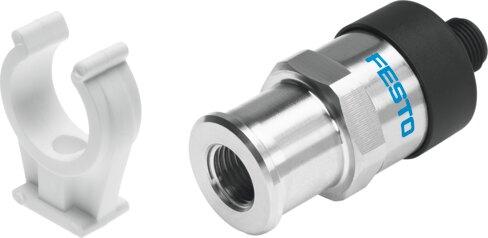

Reference imageConfirm configuration by manufacturer part number.
Festo
8000100
Pressure transmitter SPTW-B2R-G14-A-M12
The Festo 8000100 is an industrial component utilizing a piezoresistive pressure sensor to measure relative pressure within a range of -0.1 to 0.1 MPa (-1 to 1 bar, -14.5 to 14.5 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.1 %FS. Operating on a DC voltage range of 8 V to 30 V, the unit provides a 4 - 20 mA analog output alongside built-in short-circuit protection and reverse polarity protection for the operating voltage. It functions with compressed air conforming to ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media at temperatures ranging from 0 °C to 80 °C. The device holds c UL us - Listed (OL) and RCM compliance mark certifications while carrying CE and UKCA markings compliant with relevant EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- -0.1 MPa | -1 bar | -14.5 psi
- Pressure measuring range end value
- 0.1 MPa | 1 bar | 14.5 psi
- Max. overload pressure
- 2 bar
- Overload pressure
- 0.2 MPa | 2 bar | 29 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- 0 °C...80 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.1 %FS
- Analog output
- 4 - 20 mA
- Linearity error in ± % FS
- 0.5 %FS
- Short-circuit protection
- Yes
- DC operating voltage range
- 8 V...30 V
- Reverse polarity protection
- For operating voltage
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
