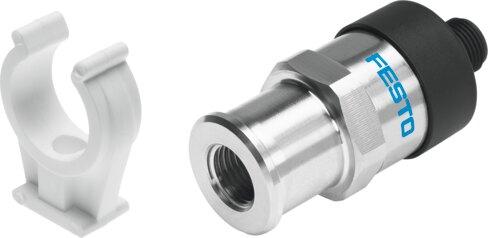

Reference imageConfirm configuration by manufacturer part number.
Festo
8000104
Pressure transmitter SPTW-P10R-G14-A-M12
The Festo part number 8000104 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure within a range of 0 to 1 MPa (0 to 10 bar or 0 to 145 psi). This device operates with a DC voltage range of 8 V to 30 V, providing a 4 to 20 mA analog output alongside built-in short-circuit protection and reverse polarity protection for the operating voltage. It functions within a medium and ambient temperature range of 0 °C to 80 °C using compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, or gaseous media, featuring an accuracy of 1 %FS and a repetition accuracy of 0.1 %FS. The unit holds c UL us - Listed (OL) and RCM certifications, carries CE and UKCA markings per relevant EU and UK EMC and RoHS directives, and is RoHS compliant. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000104
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000104.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Metal thin-lm pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Max. overload pressure
- 20 bar
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- 0 °C...80 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.1 %FS
- Analog output
- 4 - 20 mA
- Linearity error in ± % FS
- 0.5 %FS
- Short-circuit protection
- Yes
- DC operating voltage range
- 8 V...30 V
- Reverse polarity protection
- For operating voltage
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
