Festo
8000108

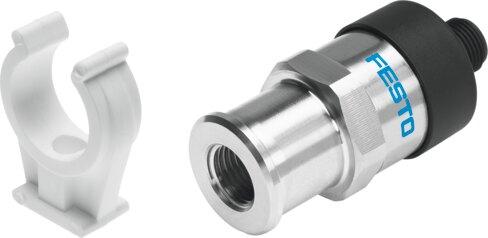

Pressure transmitter SPTW-P100R-G14-A-M12
The Festo 8000108 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across a range of 0 MPa to 10 MPa (0 bar to 100 bar, 0 psi to 1450 psi). This device operates within an ambient and medium temperature range of 0 °C to 80 °C using compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, or gaseous media, featuring a 4 - 20 mA analog output, short-circuit protection, and reverse polarity protection for an 8 V to 30 V DC operating voltage range. Certified with RCM compliance mark, c UL us - Listed (OL), CE marking as per EU EMC and RoHS directives, and UKCA marking, the unit delivers an accuracy of 1 %FS, repetition accuracy of 0.1 %FS, and a linearity error of 0.5 %FS with a max overload pressure of 200 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000108
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000108.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Metal thin-lm pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 10 MPa | 100 bar | 1450 psi
- Max. overload pressure
- 200 bar
- Overload pressure
- 20 MPa | 200 bar | 2900 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- 0 °C...80 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.1 %FS
- Analog output
- 4 - 20 mA
- Linearity error in ± % FS
- 0.5 %FS
- Short-circuit protection
- Yes
- DC operating voltage range
- 8 V...30 V
- Reverse polarity protection
- For operating voltage
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000108. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
