Festo
8000112

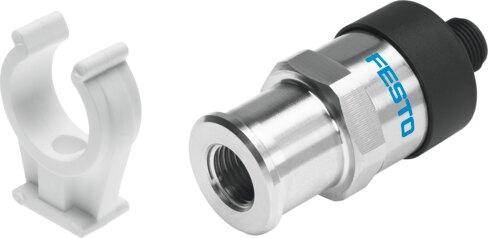

Pressure transmitter SPTW-P6R-G14-VD-M12
The Festo 8000112 is a piezoresistive pressure sensor designed to measure relative pressure across a range of 0 to 0.6 MPa (0 to 6 bar, 0 to 87 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.1 %FS. Operating on a DC voltage range of 14 V to 30 V, this component features an analog output of 0.1 to 10 V, short-circuit protection, and reverse polarity protection for the operating voltage. It accommodates compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium and ambient temperature range of 0 °C to 80 °C, while carrying RCM compliance, c UL us - Listed (OL), CE, and UKCA markings alongside RoHS compliance. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000112
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000112.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 0.6 MPa | 6 bar | 87 psi
- Max. overload pressure
- 12 bar
- Overload pressure
- 1.2 MPa | 12 bar | 174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- 0 °C...80 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.1 %FS
- Analog output
- 0.1 - 10 V
- Linearity error in ± % FS
- 0.5 %FS
- Short-circuit protection
- Yes
- DC operating voltage range
- 14 V...30 V
- Reverse polarity protection
- For operating voltage
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
