Festo
8000208
Connecting cable NEBU-M12G5-K-0.5-M12G4
The Festo part number 8000208 is an industrial component weighing 36 g featuring a straight M12x1 A-coded socket with 5 pins (4 occupied) on the field device end and a straight M12x1 A-coded plug with 4 pins (4 occupied) on the control side, both utilizing a screw-type lock design and adhering to EN 61076-2-101. This cable designation includes 2x label holders and conforms to EN 60947-5-2 and EN 61076-2-101 standards for wire colors and connection numbers across a DC operating voltage range of 0 V to 250 V. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
- Cable designation
- With 2x label holders
- Product weight
- 36 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

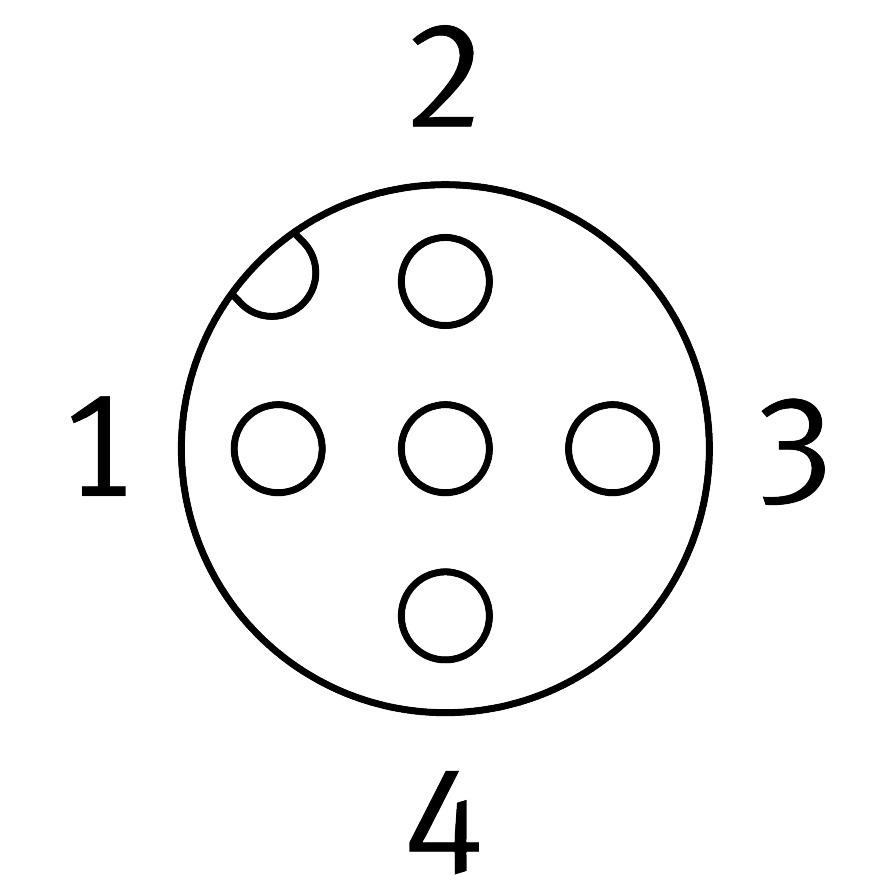

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Cable length
- 0.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Bending radius, xed cable installation
- 14 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000208. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
