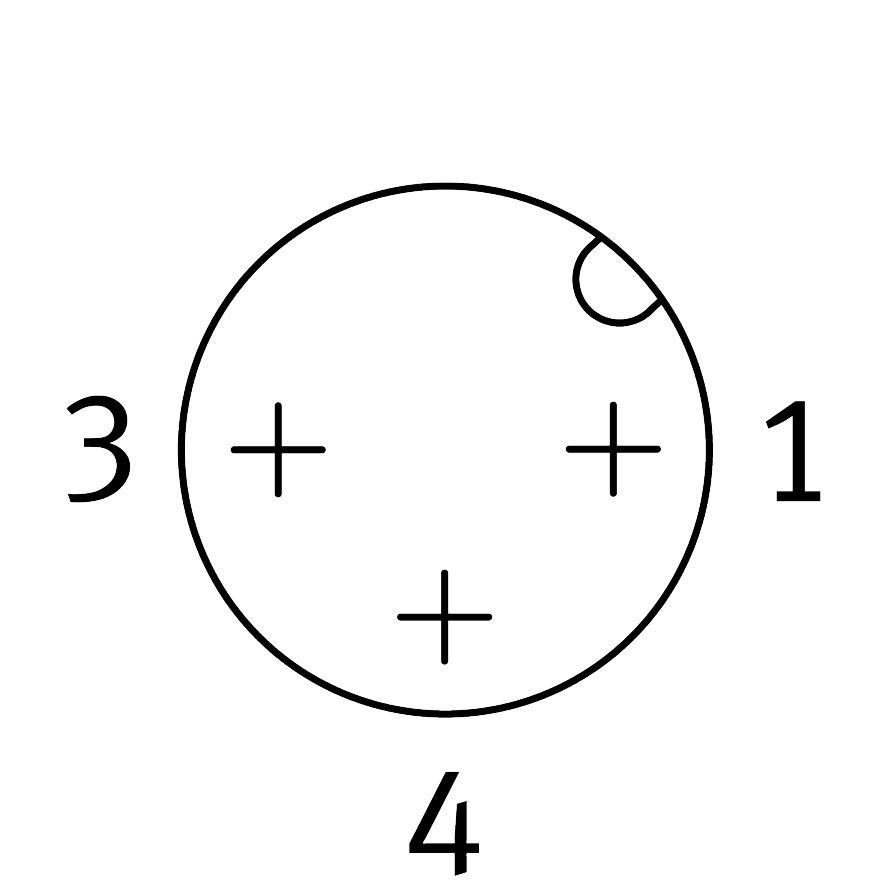

Reference imageConfirm configuration by manufacturer part number.
Festo
8000209
Connecting cable NEBU-M8G3-K-0.5-M12G3
The Festo part number 8000209 is a 29 g industrial component featuring a straight M8x1 A-coded socket with 3 pins on the field device end and a straight M12x1 A-coded plug with 3 pins on the control side, both utilizing screw-type locks and conforming to EN 60947-5-2, EN 61076-2-101, and EN 61076-2-104 standards. Designed with 2x label holders and wire colors matching connection numbers, this assembly operates within a DC operating voltage range of 0 V to 60 V. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101 | EN 61076-2-104
- Cable designation
- With 2x label holders
- Product weight
- 29 g
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...60 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
- Cable length
- 0.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
- Bending radius, xed cable installation
- 12 mm
