8000210

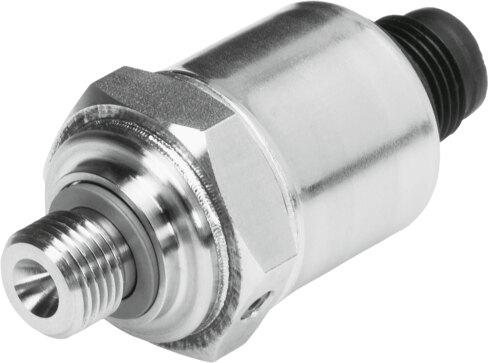

Name: Festo 8000210 Pressure switch SPBA-P2R-G18-2P-M12-0,25X
Brand: Festo

Pressure switch SPBA-P2R-G18-2P-M12-0,25X

The Festo part number 8000210 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across an operating pressure range of -0.1 MPa to 1 MPa (-1 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. This device features a DC operating voltage range of 19.2 V to 30 V, a 4-pin M12x1 round plug electrical connection conforming to EN 60947-5-2 with reverse polarity protection for all electrical connections, and short-circuit protection for its 2xPNP switching outputs. Compliance is certified by CE marking per EU EMC and machinery directives, UKCA marking per UK instructions for EMC and RoHS, and RoHS material compliance. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8000210
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8000210.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): As per EU EMC directive | as per EU machinery directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Metal thin-lm pressure sensor
Operating pressure: -0.1 MPa...1 MPa | -1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Switching output: 2xPNP
Switching function: Threshold value with xed hysteresis
Switching element function: Antivalent
Switch-on point: 0.25 bar
Max. switch-on point: 0.4 bar
Min. switch-oﬀ point: 0.05 bar
Max. output current DC: 500 mA
Short-circuit protection: Yes
DC operating voltage range: 19.2 V...30 V
Reverse polarity protection: for all electrical connections
Electrical connection: 4-pin | M12x1 | Plug | As per EN 60947-5-2 | Round design
Electrical connection 1, connection type: Plug
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock | not rotatable | Compatible with rotatable screw-type lock
Type of mounting: Screw-in
Pneumatic connection: G1/8

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8000210. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
