Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8000326

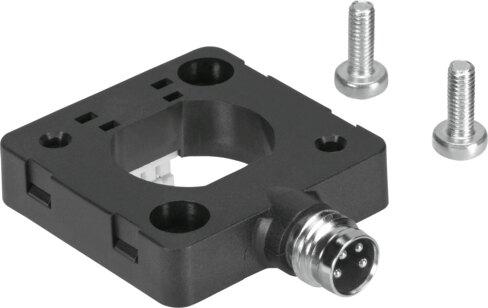

Electrical adapter SASC-P4-A-M8-A
The Festo 8000326 industrial component features an IP40 degree of protection and a CRC 2 moderate corrosion stress rating with VDMA24364-B1/B2-L LABS conformity. Constructed with a reinforced polyamide black housing, nickel-plated brass plug housing, and high-alloy steel screws, this RoHS-compliant part utilizes a 4-pin M8x1 A-coded electrical connection conforming to EN 61076-2-104 supporting straight or angled cable outlets via snap-locking or screw-type lock mounting. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000326
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000326.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight, angled
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104 | Diameter 8 mm, A-coded according to EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Type of mounting
- Screwed
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Material of screws
- High-alloy steel
- Material of plug housing
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000326. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
