Festo
8000327

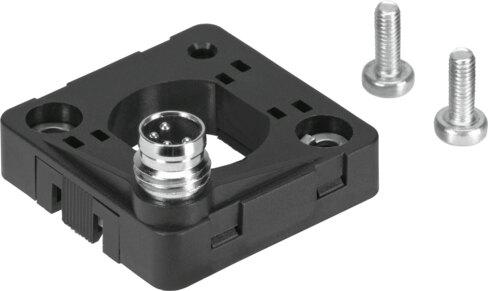

Electrical adapter SASC-P4-A-M8-S
The Festo 8000327 is an industrial component featuring a black, PA-reinforced housing with high-alloy steel screws and a nickel-plated brass plug housing. It provides IP40 protection, a CRC rating of 2 for moderate corrosion stress, and VDMA24364-B1/B2-L LABS conformity with RoHS compliance. Electrical connection 1 utilizes a 4-pin, 4-wire M8x1 A-coded configuration per EN 61076-2-104 with a straight or angled cable outlet and snap-locking or screw-type mounting options. The unit itself features a screwed type of mounting for secure installation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000327
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000327.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight, angled
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104 | Diameter 8 mm, A-coded according to EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Snap-locking | Screw-type lock | not rotatable | Compatible with snap-locking | Compatible with rotatable screw-type lock
- Type of mounting
- Screwed
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Material of screws
- High-alloy steel
- Material of plug housing
- Brass, nickel-plated
