Festo
8000464

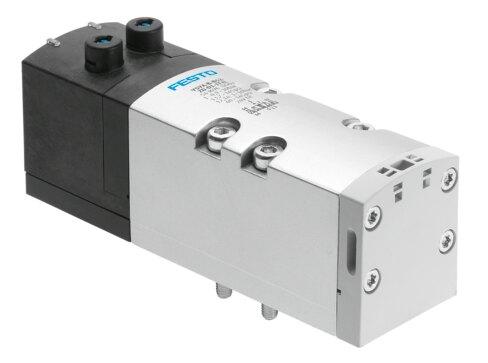

Air solenoid valve VSVA-B-P53F-ZD-D1-1T1L
The Festo 8000464 is a 42 mm electrical industrial component featuring a 5/3 piston gate valve function with pressurized 1 to 2 and 4 to 5 closed, operating on 24V DC with an IP65 and NEMA 4 degree of protection. This piloted valve utilizes a soft sealing principle, an external pilot air supply port, and a normal nominal flow rate of 1400 l/min according to DIN 1343, supporting an operating pressure range of -0.9 bar to 10 bar and a pilot pressure of 3 bar to 10 bar. Additional features include an adjustable exhaust air function via a throttle plate or individual sub-base, an LED signal status display, c UL us recognition, and a manual override that is detenting, non-detenting, and covered. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000464
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000464.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 pressurized 1 to 2, 4 to 5 closed
- Actuation type
- Electrical
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- Sub-base, size 1 as per ISO 5599-2 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | NEMA 4
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Any
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Flow rate of pneumatic valve
- 1700 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1400 l/min
- Optimized ow rate of pneumatic valve, pneumatically concatenated
- 1700 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 1400 l/min
- Switching time off
- 65 ms
- On switching time
- 22 ms
