Festo
8000536

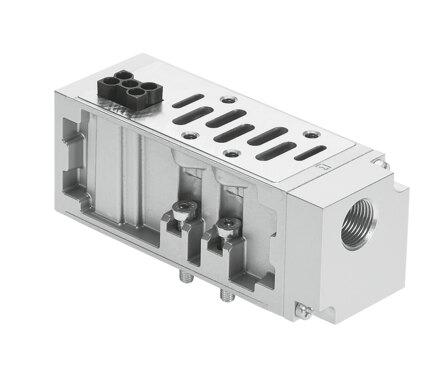

Vertical pressure supply plate VABF-S2-1-P1A14-G38
The Festo 8000536 is an industrial component featuring a width of 42 mm and a die-cast aluminum housing conforming to ISO 5599-2, with a normal nominal flow rate of 1300 l/min and an operating pressure range from -0.9 bar to 10 bar. Designed for pneumatic vertical stacking providing an alternative pressure supply for ports 1 and 14, this IP65-rated and NEMA 4 unit weighs 340 g and mounts in any position on a manifold or individual sub-base. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -5 °C to 50 °C, where oil lubrication is possible and required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Based on norm
- ISO 5599-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Alternative pressure supply for 1 and 14
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- CE marking (see declaration of conformity)
- as per EU simple pressure vessel directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 340 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
