Name: Festo 8000550 Vertical pressure supply plate VABF-S2-2-P1A14-N12
Brand: Festo

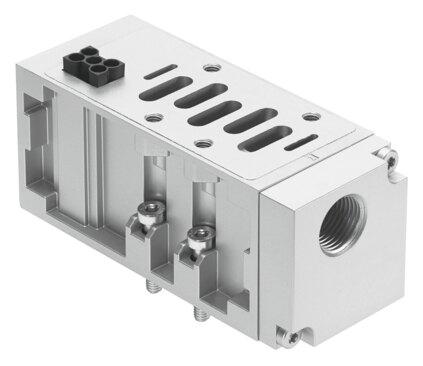

Vertical pressure supply plate VABF-S2-2-P1A14-N12

The Festo 8000550 is an industrial component adhering to the ISO 5599-2 norm with a width of 54 mm and a product weight of 605 g, designed for alternative pressure supply for ports 1 and 14 via pneumatic vertical stacking. This unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers a normal nominal flow rate of 2800 l/min using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Featuring IP65 and NEMA 4 degrees of protection, it mounts onto a manifold sub-base or individual sub-base in any mounting position and complies with the EU low voltage directive and UKCA electrical equipment instructions. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8000550
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8000550.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 54 mm
Based on norm: ISO 5599-2
Mounting position: Any
Pneumatic vertical stacking: Alternative pressure supply for 1 and 14
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Inlet pressure 1: 0.5 bar...10 bar
Inlet pressure 1 MPa: 0.05 MPa...1 MPa
Inlet pressure 1 psi: 7.25 psi...145 psi
Normal nominal ow rate (normalized to DIN 1343): 2800 l/min
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 605 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8000550. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
