Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

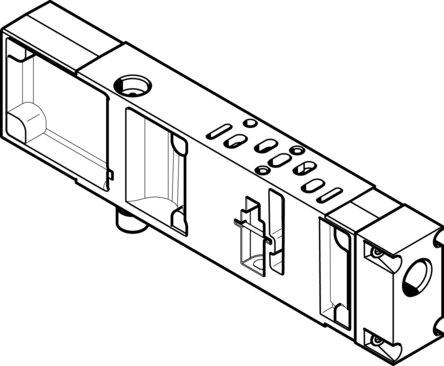

Reference imageConfirm configuration by manufacturer part number.
Festo
8000693
Vertical pressure supply plate VABF-S4-2-P1A14-G18
The Festo 8000693 industrial component is a die-cast aluminum pneumatic vertical stacking unit built to ISO 15407-2 standards with an 18 mm width and G1/8 pneumatic connection 1. Featuring an operating pressure of 1 MPa (10 bar), a normal nominal flow rate of 430 l/min, and an IP65 or NEMA 4 degree of protection, it supports an operating medium of compressed air as per ISO 8573-1:2010 [7:4:4] in any mounting position. This RoHS-compliant part weighs 140 g, operates within an ambient temperature range of -5 °C to 50 °C, and mounts on a manifold sub-base or individual sub-base with alternative pressure supply for 1 and 14. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000693
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000693.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 18 mm
- Based on norm
- ISO 15407-2
- Mounting position
- Any
- Pneumatic vertical stacking
- Alternative pressure supply for 1 and 14
- Operating pressure
- 1 MPa | 10 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 430 l/min
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | NEMA 4
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 140 g
- Vertical stacking mounting type
- On manifold sub-base | On individual sub-base
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000693. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
