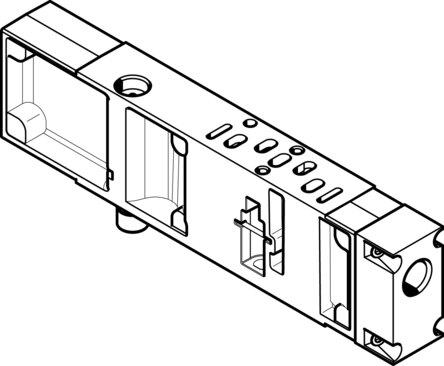

Name: Festo 8000694 Vertical pressure supply plate VABF-S4-2-P1A14-N18
Brand: Festo

Vertical pressure supply plate VABF-S4-2-P1A14-N18

The Festo part number 8000694 is an industrial component featuring an 18 mm width and an ISO 15407-2 design basis, constructed with a die-cast aluminum housing weighing 140 g. This device delivers a normal nominal flow rate of 430 l/min at an operating pressure of 1 MPa (10 bar), utilizing compressed air per ISO 8573-1:2010 [7:4:4] with optional oil lubrication. Equipped with IP65 and NEMA 4 protection ratings, it supports mounting on manifold or individual sub-bases in any position for pneumatic vertical stacking with alternative pressure supply for ports 1 and 14. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8000694
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8000694.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 18 mm
Based on norm: ISO 15407-2
Mounting position: Any
Pneumatic vertical stacking: Alternative pressure supply for 1 and 14
Operating pressure: 1 MPa | 10 bar
Normal nominal ow rate (normalized to DIN 1343): 430 l/min
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Degree of protection: IP65 | NEMA 4
Ambient temperature: -5 °C...50 °C
Product weight: 140 g
Vertical stacking mounting type: On manifold sub-base | On individual sub-base
Pneumatic connection 1: 1/8 NPT
Note on materials: RoHS compliant
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8000694. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
