Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

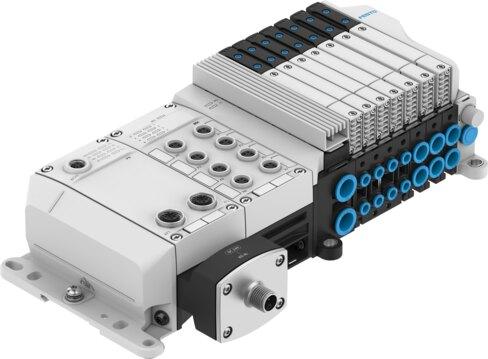

Reference imageConfirm configuration by manufacturer part number.
Festo
8000810
Valve manifold VTUX-A-P-APA-
The Festo part number 8000810 is an electrically actuated industrial component featuring a piston gate valve structural design with a soft sealing principle and a piloted type of control. This unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -1 bar to 7 bar, a pilot pressure range of 1.5 bar to 7 bar, and an ambient temperature range of -5 °C to 50 °C. It accommodates various valve functions including 2x3/2 and 5-way configurations, providing a standardized nominal flow rate from 470 l/min to 690 l/min with adjustable exhaust air function and tie rod mounting. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000810
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000810.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.55 mm...16.05 mm
- Type of mounting
- Tie rod
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Degree of protection
- IP40 | IP65
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Operating pressure
- -1 bar...7 bar
- Pilot pressure
- 1.5 bar...7 bar
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Actuation type
- Electrical
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, closed | 5/3-way valve, with holding function, for vacuum switching unit | 5/4-way valve, with holding function, for vacuum generator | 5/4 closed, 2 or 4 exhausted
- Structural design
- Piston gate valve
- Sealing principle
- Soft
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Nominal ow rate standardized according to ISO 8778
- 470 l/min...690 l/min
- Flow direction
- Reversible with restrictions
- Exhaust air function
- Adjustable
- Pneumatic connection 1
- QS-8 | QS-10 | QS-12 | QS-14
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000810. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
