Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

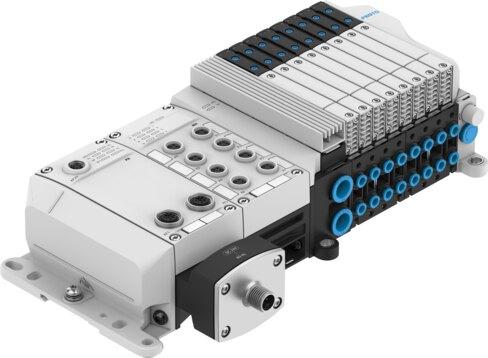

Reference imageConfirm configuration by manufacturer part number.
Festo
8000815
Valve manifold VTUX-A-S-APA-
Engineered by Festo with part number 8000815, this electrical piston gate valve utilizes soft sealing and a piloted control type supporting internal or external pilot air supply ports. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -1 bar to 7 bar and a pilot pressure of 1.5 bar to 7 bar, delivering a standardized nominal flow rate from 470 l/min to 690 l/min. The component features a tie rod mounting design with a width dimension of 10.55 mm to 16.05 mm, an ambient temperature range of -5 °C to 50 °C, adjustable exhaust air function, and CRC 1 low corrosion stress. Certified with c UL us - Listed (OL) and RCM compliance mark while carrying CE marking as per EU EMC and RoHS directives, it offers IP20, IP40, and IP65 protection degrees along with multiple configurable valve functions including 5/2-way, 5/3-way, and 2x3/2 configurations. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8000815
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000815.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.55 mm...16.05 mm
- Type of mounting
- Tie rod
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Degree of protection
- IP20 | IP40 | IP65
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Operating pressure
- -1 bar...7 bar
- Pilot pressure
- 1.5 bar...7 bar
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Actuation type
- Electrical
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, closed | 5/3-way valve, with holding function, for vacuum switching unit | 5/4-way valve, with holding function, for vacuum generator | 5/4 closed, 2 or 4 exhausted
- Structural design
- Piston gate valve
- Sealing principle
- Soft
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Nominal ow rate standardized according to ISO 8778
- 470 l/min...690 l/min
- Flow direction
- Reversible with restrictions
- Exhaust air function
- Adjustable
- Pneumatic connection 1
- QS-8 | QS-10 | QS-12
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000815. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
