Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

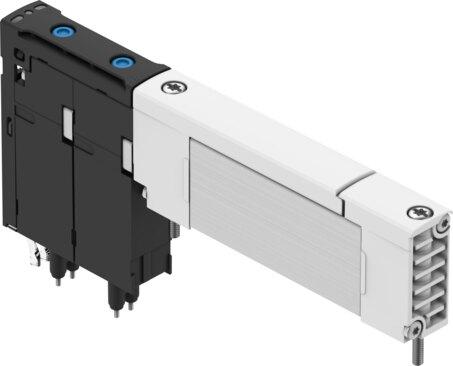

Reference imageConfirm configuration by manufacturer part number.
Festo
8000850
Solenoid valve VUVX-...T1
Festo Solenoid valve VUVX-...T1, part number 8000850, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8000850
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000850.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, monostable | 5/3-way valve, with holding function, for vacuum switching unit | 5/4-way valve, with holding function, for vacuum generator | 5/4 closed, 2 or 4 exhausted
- Actuation type
- Electrical
- Valve size
- 10 mm | 15 mm
- Nominal ow rate standardized according to ISO 8778
- 340 l/min...1650 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP40 | IP65
- Width
- 10.35 mm...15.3 mm
- Nominal width
- 3.5 mm...6.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible | Reversible | Reversible with restrictions
- Lap
- Positive overlap | Negative overlap
- Signal status display
- Yes
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000850. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
