Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

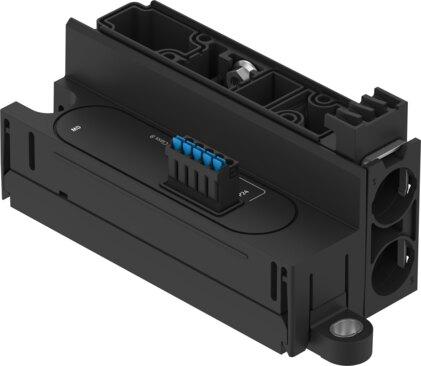

Reference imageConfirm configuration by manufacturer part number.
Festo
8000870
Verkettungsplatte VABX-
Festo Verkettungsplatte VABX-, part number 8000870, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8000870
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8000870.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 1 | 2 | 3
- Width dimension
- 10.55 mm | 12.55 mm | 16.05 mm | 19.05 mm
- Valve size
- 10 mm | 15 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Connection position
- Lateral
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Diagnostics via LED
- (outputs) power supply load | Diagnostics per channel | Diagnostics per module | Load power supply | Connection Status
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Load supply undervoltage PL | Logic supply undervoltage PS | Electronics/sensors undervoltage | Load supply overvoltage PL | Logic supply overvoltage PS
- Max. no. of valve positions
- 1 | 4
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Coding cover for determining the control air supply (internal or external) | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Filter | Electric air-saving function
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8000870. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
