8001211

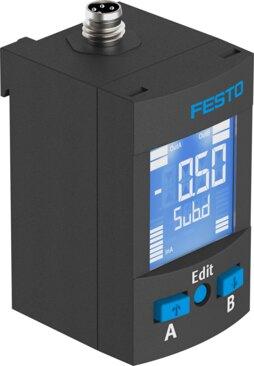

Name: Festo 8001211 Pressure sensor SPAU-P10R-H-Q4D-L-PNLK-PNVBA-M8D
Brand: Festo

Pressure sensor SPAU-P10R-H-Q4D-L-PNLK-PNVBA-M8D

The Festo part number 8001211 is a piezoresistive pressure sensor engineered to measure relative pressure in compressed air as per ISO 8573-1:2010 [7:4:4] and inert gases, supporting a measuring range from 0 to 1 MPa (0 to 10 bar, 0 to 145 psi) with an overload pressure threshold of 1.5 MPa (15 bar, 217.5 psi). It features a 12-bit ADC resolution, 1.5 %FS accuracy, 0.3 %FS repetition accuracy, a temperature coefficient of 0.05 %FS/K, and two switchable PNP or 2 NPN switching outputs with freely programmable functions for operating temperatures between 0 °C and 50 °C. The unit carries RCM, c UL us - Listed (OL), KC-EMV, CE, and UKCA compliance markings while ensuring RoHS-compliant material construction and lubricated operation capability. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8001211
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8001211.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Piezoresistive pressure sensor
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1 MPa | 10 bar | 145 psi
Overload pressure: 1.5 MPa | 15 bar | 217.5 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Lubricated operation possible
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
ADC resolution: 12 bit
Accuracy in ± % FS: 1.5 %FS
Repetition accuracy in ± %FS: 0.3 %FS
Temperature co-eﬃcient in ± %FS/K: 0.05 %FS/K
Switching output: 2 x PNP or 2 x NPN switchable
Switching function: Freely programmable
Switching element function: N/C contact/N/O contact, switchable
Max. output current: 100 mA
Analog output: 0 - 10 V | 4 - 20 mA | 1 - 5 V

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8001211. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
