Festo
8001221

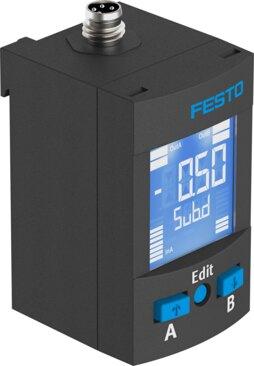

Pressure sensor SPAU-P10R-H-G18FD-L-PNLK-PNVBA-M8U
The Festo 8001221 is a piezoresistive pressure sensor designed to measure relative pressure in compressed air conforming to ISO 8573-1:2010 [7:4:4] and inert gases across a measuring range of 0 to 1 MPa (0 to 10 bar, 0 to 145 psi) with an overload pressure threshold of 1.5 MPa (15 bar, 217.5 psi). This industrial component features a 12-bit ADC resolution, 1.5 %FS accuracy, 0.3 %FS repetition accuracy, a temperature coefficient of 0.05 %FS/K, and two switchable PNP or 2 NPN freely programmable switching outputs for a medium and ambient temperature range of 0 °C to 50 °C with lubricated operation capability. It holds c UL us - Listed (OL) and RCM certifications, carries KC-EMV markings, and complies with EU and UK directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001221
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001221.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Overload pressure
- 1.5 MPa | 15 bar | 217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- ADC resolution
- 12 bit
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Freely programmable
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V | 4 - 20 mA | 1 - 5 V
