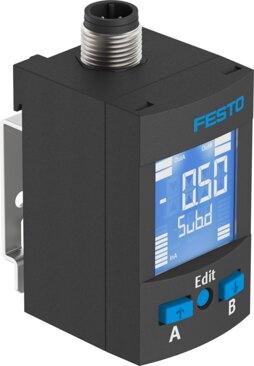

Reference imageConfirm configuration by manufacturer part number.
Festo
8001231
Pressure sensor SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M8U
The Festo part number 8001231 is an industrial component featuring a piezoresistive pressure sensor designed to measure relative pressure within a range of 0 to 1 MPa (0 to 10 bar, 0 to 145 psi). This unit incorporates a 12-bit ADC resolution, 1.5 %FS accuracy, 0.3 %FS repetition accuracy, a temperature coefficient of 0.05 %FS/K, and two switchable PNP or NPN switching outputs with freely programmable switching functions. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] or inert gases across medium and ambient temperatures from 0 °C to 50 °C, supporting an overload pressure up to 1.5 MPa (15 bar, 217.5 psi) and lubricated operation. Certifications and markings include RCM compliance, c UL us - Listed (OL), KC-EMV, RoHS compliance, along with CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001231
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001231.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Overload pressure
- 1.5 MPa | 15 bar | 217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- ADC resolution
- 12 bit
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Freely programmable
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V | 4 - 20 mA | 1 - 5 V
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8001231. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
