Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.

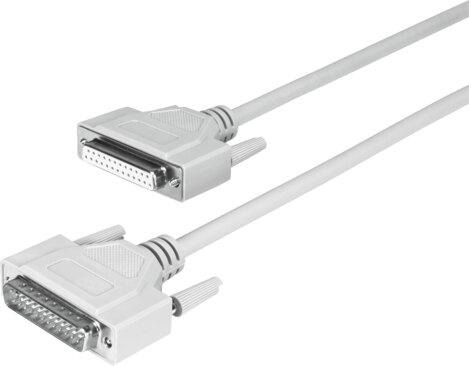

Festo
8001375
Connecting cable NEBC-S1G25-K-2.0-N-S1G25
This Festo industrial component, part number 8001375, functions as a cable assembly designed without a label holder for 24 V DC nominal operating voltage systems with a 1 A current rating at 40° C. The unit features a straight 25-pin Sub-D plug on the field device side and a straight 25-pin Sub-D socket on the control side, with all 25 pins occupied on both square-designed connectors. Each connection technology utilizes 2x 4-40 UNC screws for mounting. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001375
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001375.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection
- 25-pin | Straight plug | Sub-D/Sub-D
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 25
- Electrical connection 1, occupied pins/wires
- 25
- Electrical connection 1, type of mounting
- 2x 4-40 UNC screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 25
- Electrical connection 2, occupied pins/wires
- 25
- Electrical connection 2, type of mounting
- 2x 4-40 UNC screw
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 1 A
- Shield
- Yes
- Cable length
- 2 m
- Cable characteristic
- Standard
- Cable diameter
- 7 mm
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- 0 °C...70 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8001375. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
